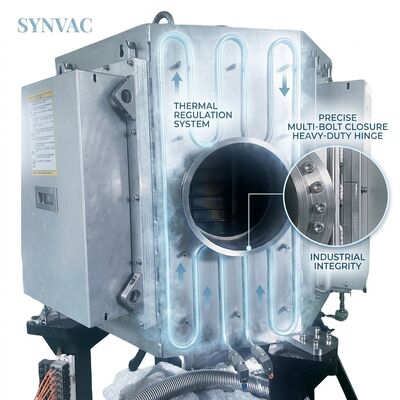

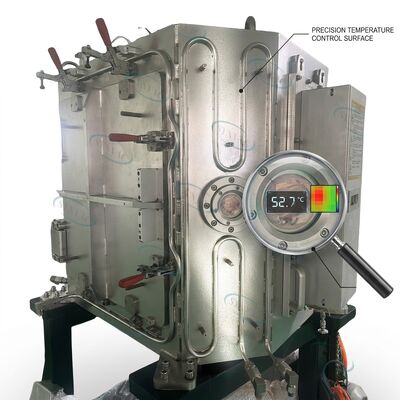

Customizable Multi-Port Stainless Steel Vacuum Chamber 304 316L OEM CF ISO KF Ports for Industrial Coating

This customizable multi-port stainless steel vacuum chamber is engineered for industrial coating, thin-film deposition, and material processing applications that demand flexible vacuum port configurations. Fabricated from high-grade 304 or 316L stainless steel, the chamber body accommodates multiple flange types including CF, ISO, and KF connections, allowing system integrators to configure pumping ports, feedthrough access, and instrumentation interfaces according to specific process requirements. Each chamber undergoes helium leak testing to verify vacuum integrity, with all welded joints produced using argon arc welding for consistent, high-strength seals. Available as a fully customized OEM solution, this vacuum enclosure adapts to diverse industrial workflows ranging from PVD coating systems to research-scale vacuum experiments.

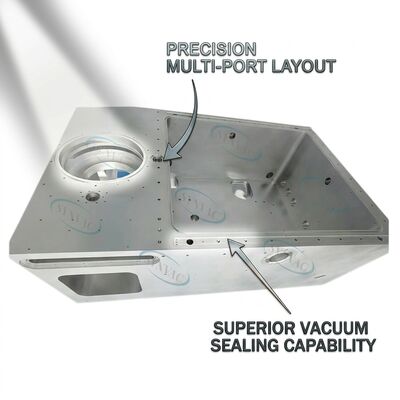

• Multi-Port Flexibility: Chamber body supports simultaneous integration of CF, ISO, and KF flanges across multiple faces, enabling tailored layouts for pumps, gauges, valves, and electrical feedthroughs without compromising structural integrity.
• Premium Stainless Steel Construction: Fabricated from 304 or 316L grade stainless steel with low carbon content, providing excellent corrosion resistance against process gases and minimal outgassing for clean vacuum environments.
• Precision Argon Arc Welding: All seams and flange-to-body joints utilize argon arc welding techniques to produce deep-penetration, contamination-free welds with smooth internal bead profiles that resist virtual leak formation.
• Helium Leak Tested: Every chamber is subjected to helium mass spectrometer leak detection with sensitivity down to 1x10^-10 Pa·m³/s, ensuring leak-tight performance across the full operating pressure range from rough vacuum to high vacuum levels.
• Full OEM Customization: Chamber dimensions, port locations, flange sizes, viewport cutouts, and internal fixturing can all be specified according to customer engineering drawings, with in-house machining and welding capabilities enabling rapid prototype-to-production turnaround.
• Surface Treatment Options: Standard glass bead blasting provides a uniform matte finish, while optional electropolishing delivers a mirror-smooth interior surface that reduces outgassing and accelerates pump-down cycles for more demanding vacuum applications.
• Structural Reinforcement: External ribbing and gusset plates are strategically positioned on larger chamber bodies to prevent deflection under vacuum, maintaining dimensional stability and flange alignment throughout repeated thermal and pressure cycles.

This multi-port vacuum chamber serves as the core process vessel for industrial physical vapor deposition (PVD) and chemical vapor deposition (CVD) coating systems, where flexible port allocation is critical for accommodating multiple magnetron sputtering sources, substrate heaters, and optical monitoring ports. In thin-film research laboratories, the configurable flange layout supports rapid reconfiguration of experimental setups without requiring chamber replacement. The chamber also integrates into vacuum degassing stations for transformer oil purification, vacuum drying systems for pharmaceutical lyophilization, and space simulation chambers for component outgassing testing. Additional application areas include plasma etching systems, ion beam processing stations, and vacuum brazing furnaces where multi-access vacuum enclosures form the backbone of production workflows.

Each vacuum chamber is cleaned, purged with dry nitrogen, and sealed with protective flange covers before being packed in custom-fitted wooden crates with shock-absorbing foam inserts. Chambers are shipped with helium leak test certificates, material mill test reports, and dimensional inspection records. All SYNVAC vacuum chambers are backed by a comprehensive warranty covering material and workmanship defects, with technical engineering support available for system integration guidance, port layout optimization, and post-installation performance validation.
