Precision KF Compressible Bellows Connections for Thermal Expansion & Vibration Control

Product Description

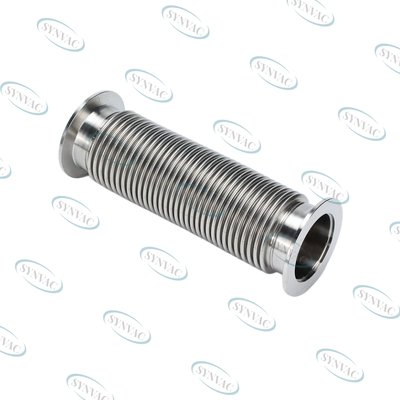

KF Compressible Bellows Connections are engineered expansion compensators designed to absorb axial compression, lateral deflection, and angular movement in rigid piping systems. Unlike standard flexible hoses, these bellows feature a convoluted metallic or elastomeric structure that compresses linearly under thermal expansion or mechanical vibration. The “KF” standard ensures compatibility with vacuum and low-pressure industrial systems, including semiconductor fabrication, HVAC circuits, and chemical processing lines. Manufactured with precision-formed bellows and end fittings (flanged, threaded, or quick-clamp), KF Compressible Bellows Connections provide a leak-tight yet axially movable joint. They extend equipment life by eliminating stress on fixed pipe supports, pumps, and valves.

Key Features & Characteristics

• High Compression Capacity: Axial travel up to 25% of free length (standard) and 40% for extended-stroke designs.

• Multi-Ply Construction: 2–5 layers of stainless steel (AISI 304/316L) or reinforced elastomer for burst resistance and flexibility.

• Temperature Extremes: Operate from -196°C (LN2) up to +650°C with Inconel or high-grade stainless alloys.

• Pressure Range: Vacuum (10⁻⁶ mbar) to 25 bar (360 psi), depending on wall thickness and ply count.

• Corrosion Resistance: Optional Hastelloy or Monel bellows for aggressive chemical or marine environments.

• End Fitting Variety: KF flanges, ISO-KF quick clamps, threaded NPT/BSP, or custom flanges.

Why Choose KF Compressible Bellows Connections?

• Cycle Life Guarantee: 10,000+ full compression cycles under rated pressure (tested per EJMA).

• Vacuum Suitability: Helium leak-tested to <1×10⁻⁹ mbar·L/s for high-vacuum applications.

• Custom Strokes: Special-order bellows with up to 60% axial compression available.

• Cost Saving: Eliminates expensive pipe guides and anchors required for rigid loops.

• Quick Delivery: Standard sizes (DN16-DN50) shipped within 72 hours.

Common Applications

• Steam and hot water piping (boiler connections)

• Cryogenic transfer lines (liquid nitrogen, oxygen)

• Exhaust gas systems (turbocharger downpipes)

• Semiconductor vacuum chambers (load-lock ports)

• Pump and compressor anti-vibration connectors

• HVAC chillers and air handling units
